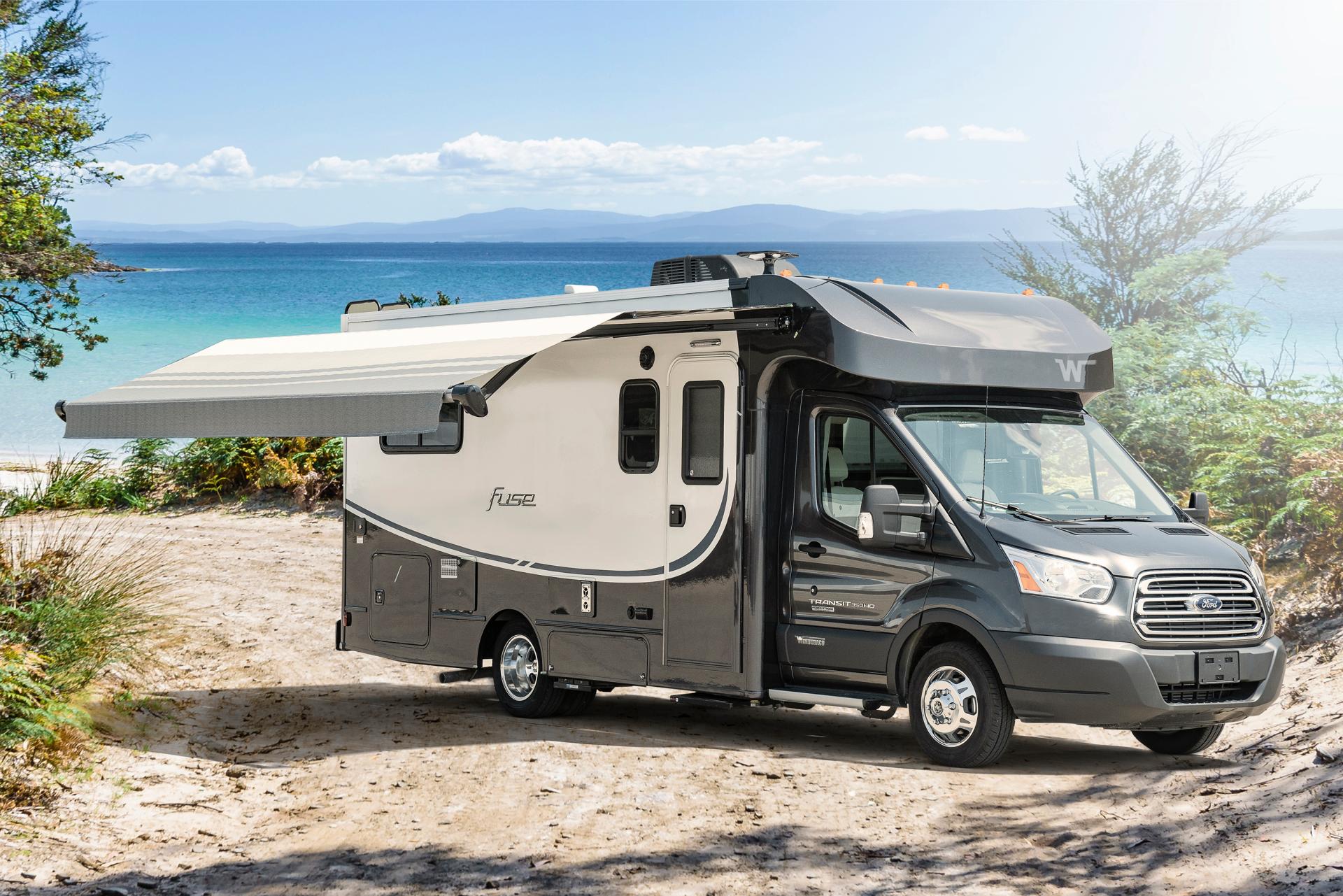

Winnebago Fuse exterior view with awning extended, on a sandy dune with water in the background

Fuse

Logo

Fuse

Built for wherever you wander, the Fuse® is a luxurious and flexible Class C that can be configured to fit your needs. With its fuel and energy-efficient Ford® Power Stroke® diesel engine, the Fuse is designed to keep you and your friends and family entertained inside and out, no matter how far away your destination.

Starting At: $127,777

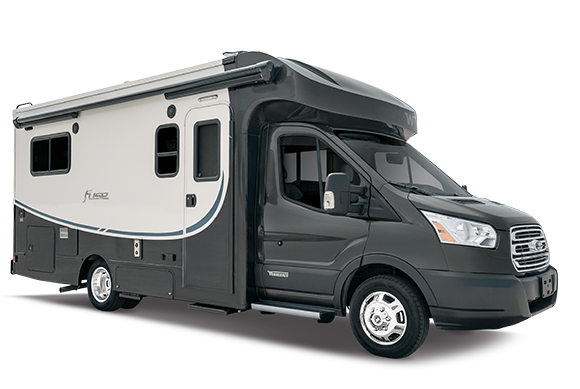

WInnebago Fuse exterior 3/4 view

Floorplans

24' Length
3 Sleeps9
24' Length
2 Sleeps9
24' Length
3 Sleeps9

Features

Winnebago Fuse interior, from front to back detail of dining and galley areas

Adjustable Luxury

With a full galley, extensive entertainment system, and full bath including a shower, each of the slideout-equipped floorplans will surprise you with their room and flexibility.

Tailor-Made Adventures

Tailor-Made Adventures

With add-ons like a bike rack and a host of other items, you can customize your Fuse to make it your own.

Outdoor Comforts

Outdoor Comforts

Outshine the stars and illuminate the night with Fuse’s powered armless LED-lit patio awning and aluminum cab steps with ground-effect LED lighting.

Safe Plus Sound

Safe Plus Sound

Stay safe and connected with SYNC® 3 w/MyFord® Touch, navigation, 6" multifunction HD display, SiriusXM® satellite radio and lane departure warning system.

Winnebago Fuse detail view of the drivers position, including steering wheel and dashboard

Focused Power

Feel the strength of the Ford® Power Stroke® 3.2L I5 diesel engine doling an impressive 185 horses all while anchored to the world-renowned Ford® Transit chassis.

Specifications

23A 23F 23T
Exterior Length 24' 24' 24'
Exterior Height1 10'1.5" 10'1.5" 10'1.5"
Exterior Width2 7'6.25" 7'6.25" 7'6.25"
Exterior Storage3 (cu. ft.) 23.2 37.9 35.2
Awning Length 16' 16' 10'4"
Interior Height 6'8" 6'8" 6'8"
Interior Width 7'3" 7'3" 7'3"
Freshwater Tank Capacity4 (gal.) 27 33 33
Water Heater Capacity (gal.) 6 6 6
Holding Tank Capacity4 — Black (gal.) 43 40 40
Holding Tank Capacity4 — Gray (gal.) 40 43 43
LP Capacity5 (lbs.) 54.99 54.99 54.99
Fuel Capacity (gal.) 25 25 25
GCWR6 (lbs.) 13,500 13,500 13,500
GVWR (lbs.) 10,360 10,360 10,360
GAWR - Front (lbs.) 4,130 4,130 4,130
GAWR - Rear (lbs.) 7,275 7,275 7,275
Wheelbase 156" 156" 156"
Cassette Toilet Capacity4 (gal.) --- --- ---
Sleeps9 3 2 3
Axles (lbs.) --- --- ---
Dry Weight (lbs.) --- --- ---
Furnace (BTU) --- --- ---
Garage Length --- --- ---
Hitch Weight (lbs.) --- --- ---
Slideouts --- --- ---
Tire Size --- --- ---

Ford® Transit Chassis
185-hp. 3.2L I5 diesel engine, 6-speed automatic overdrive transmission w/SelectShift®
Trailer Hitch6 5,000-lb. drawbar/350-lb. maximum vertical tongue weight
Stainless steel wheel liners

Optional Equipment:
Electric stabilizing jacks
Stylized alloy wheels

Cab seats armrests, fixed lumbar support, adjustable headrest, and multi-adjustable swivel (passenger seat only)/recline/slide
SYNC® 3 w/MyFord® Touch, navigation, 6" multi-function HD display, SiriusXM® satellite radio, lane departure warning system
Rearview Monitor System w/color camera
Airbags driver and front passenger
3-point seat belts
Cruise control
Power steering w/tilt wheel
12-volt powerpoints
Power door locks
Sunvisors
Power exterior mirrors w/defrost/turn signal
Cab window blinds
Black vinyl flooring

Optional Equipment:
Primera® seat covers
Passenger seat booster cushion

HDTV
Coach Stereo System AM/FM, CD/DVD player, Bluetooth®, front input jack, and alarm clock
Satellite system ready
MCD blackout roller shades
Tinted windows
Amplified digital HDTV antenna
Systems monitor panel
Roof vent
Vinyl ceiling
LED lighting
Assist bar
Vinyl flooring throughout
USB chargers
Sofa/sleeper (23A)

Optional Equipment:
Powered ventilator fan

Laminate countertops
Flip-up countertop extension (23A, 23F)
Double-door refrigerator/freezer
2-burner range top w/glass cover (23A)
3-burner range top (23F, 23T)
Microwave oven w/touch control (23F, 23T)
Microwave/convection oven w/touch control (23A)
Decorative backsplash
Stainless steel sink w/sink cover
Pantry (23F, 23T)

Optional Equipment:

3-burner range top w/oven (23F, 23T)

Shower w/wall surround 30"x31" (23A)
Shower w/wall surround 26"x35" (23F, 23T)
Retractable, self-cleaning shower screen
Skylight
Flexible showerhead
Toilet w/foot pedal
Fiberglass sink molded into countertop
Powered roof vent
Mirror (23A)
Medicine cabinet
Robe hook(s)
Towel ring(s)
Tissue holder
Shelf (23A)

Flex Bed System (23A)
Deluxe Sleep System w/adjustable headrest (23A, 23F)
Twin beds w/foam mattresses and access to storage below (23A)
Queen bed w/memory foam mattress and mattress cover (23T)
Corner single bed w/foam mattress, mattress cover, and headboard (23F)
Room divider curtain
Wardrobe

Optional Equipment:
24" HDTV

Porch light w/interior switch
Premium high-gloss skin
Lighted rear storage compartment
Exterior speaker system
Powered patio awning w/LED lighting
Aluminum cab steps w/ground-effect LED lighting
Ladder

Optional Equipment:
Bike rack

20,000 BTU low-profile, ducted furnace
Low profile air conditioner w/1,800-watt heat strip

Exterior AC duplex receptacle and TV jack
AC/DC load center, 45-amp. converter/charger
2,500-watt Cummins Onan LP generator w/automatic changeover switch
30-amp power cord
Automatic dual-battery charge control
Auxiliary start circuit
2 deep-cycle, Group 24 batteries
Coach battery disconnect system
(2) 100-watt solar panels w/battery charge controller

Optional Equipment:
1,000-watt AC/DC inverter w/remote panel

Service Center city water hookup, exterior wash station w/lighted pump switch, 10' sewer hose, coiled water hose, QuickConnect®, and sprayer head
Water tank fill w/lockable door
6-gal./110V/LP gas water heater
TrueLevel™ holding tank monitoring system
Permanent-mount LP tank w/gauge
On-demand water pump
Water system winterization package
Holding tank flushing system

Optional Equipment:
Electric heated drainage system

Child seat tether anchor (23F, 23T)
LP, smoke, and carbon monoxide detectors
10 BC fire extinguisher
Ground fault interrupter

12-month/15,000-mile basic limited warranty8
36-month/36,000-mile limited warranty on structure8
10-year limited parts-and-labor warranty on roof skin8



  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.  The actual height of our vehicle may vary by several inches depending on chassis or equipment variations.  Please contact your dealer for further information.
  2. Not applicable to this model.
  3. The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
  4. Capacities are based on measurements prior to tank installation.  Slight capacity variations can result due to installation applications.
  5. Capacities shown are tank manufacturer’s listed water capacity (W.C.).  Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
  6. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR and GCWR, as well as adequate trailer brakes.  Please refer to the Operator’s Manual of your vehicle for further towing information.
  7. See separate chassis warranty.
  8. See your dealer for complete warranty information.
  9. Sleeping capacity is the maximum based on a specific floorplan.

Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle.

In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.

**Base Manufacturers Suggested Retail Price shown. Base price does not include tax, title, license, delivery charges or optional features. Prices are subject to change without notice.
