Solis 59P

59P Floorplan

This Solis® 59P floorplan includes a Murphy+ bed or optional sofa/bed for added belt seating, plus additional pop-top sleeping, a galley kitchen with all the essentials and a wet bath for maximum comfort.

Key Features

Sleep Closer to the Stars

Our new Winnebago pop-top is designed for comfortable sleeping and safety with more headroom at either end and a new ladder with flat, wide rungs for bare feet. Built with secure, industrial locking latches and premium material to withstand elements like wind and snow, this durable pop-top fits nearly all Solis models.

Flexible Seating Options

The dinette features automotive-grade seating with three-point belts for more secure travel. An optional sofa/bed option provides comfortable seating as well as additional sleeping capacity.

Flexible Solar

Go off the grid and stay fueled. A one panel, 220-watt system is fitted to the top of the pop-top roof – while the pop-top optional model features a 170-watt system – for a sleek and unique look.

Water, Simplified

Features like dual exterior wash stations, cassette toilet, simplified water panel, the easy-to-read freshwater tank sight glass and the Eco-Hot® water system keep you on-the-go and stress-free.

Premium Insulation

Keep weather at bay and the sounds of the road out with ceiling-to-floor insulation, zipped air barrier window coverings and interior coach waterlines.*

*See winter use guidelines and procedures in owner's manual.

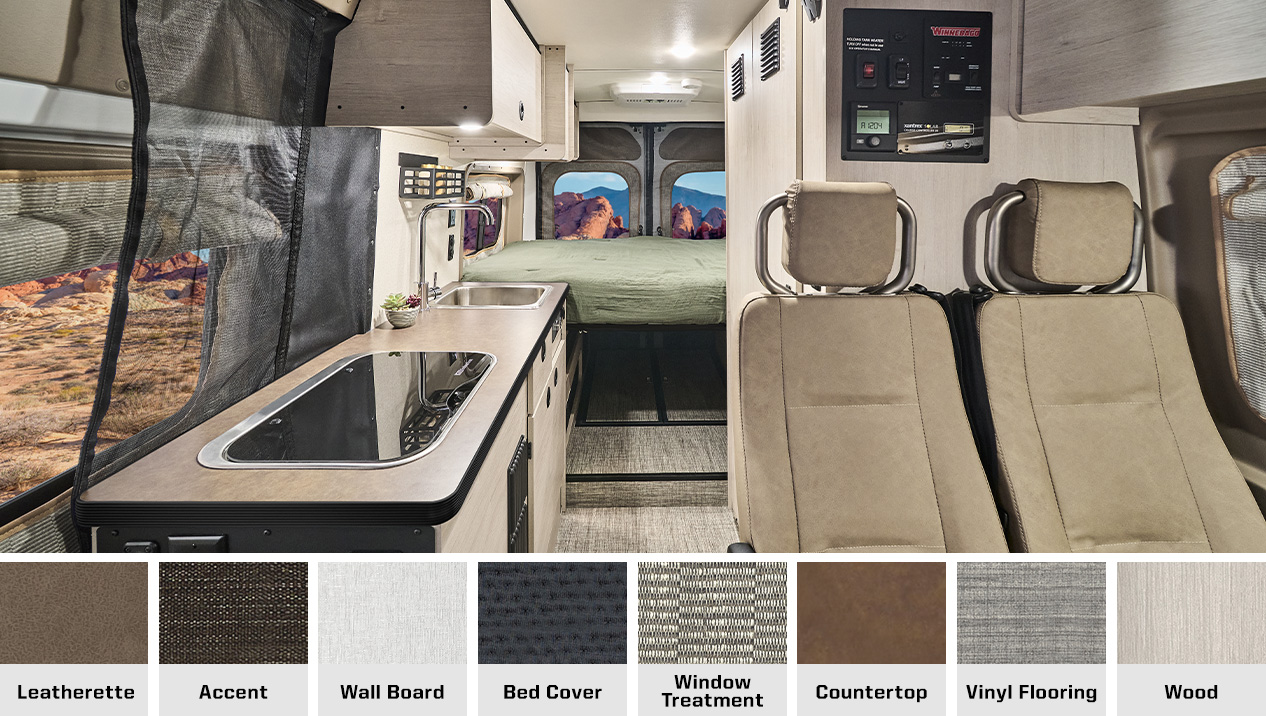

Interior Decor Options

*Interiors are representations only and are subject to change.

Nomad

Dynamicweb.Frontend.ItemViewModel?.GetString(

Specifications

Weights and Measurements
Weights and Measurements
Exterior Length
19'9"
Exterior Height 1
9'6"
Exterior Width
6'9"
Interior Height
6'3"
Interior Width
6'2"
Freshwater Tank Capacity (gal.) 4
20
Water Heater Capacity (gal.)
2.6
Holding Tank Capacity — Gray (gal.) 4
20
LP Capacity (lbs.) 5
25
Fuel Capacity (gal.)
24
GCWR (lbs.) 6
12,000
GVWR (lbs.)
8,900
GAWR - Front (lbs.)
4,629
GAWR - Rear (lbs.)
5,291
Wheelbase
159"
Cassette Toilet Capacity (gal.) 4
5
Sleeps 8
4
Chassis
Chassis
Ram ProMaster® 280-hp, 3.6L V6 gas engine, 9-speed automatic transmission, 180-amp. alternator
4-wheel ABS brakes
Trailer Hitch: 3,500-lb. drawbar/350-lb. maximum vertical tongue weight
Trailer wiring harness connector
Cab Conveniences
Cab Conveniences
Radio/rearview monitor system touchscreen, steering wheel controls, rear camera, navigation and USB ports
Cab seats adjustable headrest, slide/swivel/recline
Airbags driver and passenger
Cruise control
Crosswind assist
3-point seat belts
Electric power steering
Power mirrors w/defrost and turn signal
Power door locks w/remote
Power windows
12-volt powerpoints
Sunvisors
Front and cab window privacy panels
Full-speed forward collision warning plus
Pedestrian automatic emergency braking system
Post collision braking
Push button start
Electrical System
Electrical System
AC/DC load center, 55-amp. converter/charger
Auxiliary start circuit
2 deep-cycle Group 31 batteries (AGM maintenance-free)
Coach battery disconnect system
Automatic dual-battery charge control
30-amp. power cord
220-watt flexible surface solar panel w/controller (w/pop-top)
170-watt solar panel w/controller (without pop-top)
Interior
Interior
LED ceiling lights
Tinted coach windows
Systems monitor panel
Roof vent (Pop-top sleeping area)
Deluxe powered ventilator fan
Removable pedestal table
Below floor storage (lounge)
Reading lights
Roof wiring access port
Dinette seating w/3-point seat belts
12V, 110V and USB charging ports
Zipped window coverings
Heavy duty vinyl flooring throughout
Ladder

Optional Equipment:
Front cab air mattress 30" x 65" w/support base, cordless pump, repair kit and storage bag
Galley
Galley
Laminate countertop
Pull-out countertop extension
2-burner range top w/glass cover
3.0 cu. ft. (12V) single door compressor-driven refrigerator/freezer
Stainless steel sink
Spice rack
Bath
Bath
Flexible showerhead
Mirror
Removable clothes rod
Swiveling cassette toilet
Shower curtain
Shower w/wall surround
Tissue holder
Bedroom
Bedroom
Murphy+ bed w/mattress cover, slat bed system and access to below floor storage
Slat bed system
Movable table (Murphy+ bed option only)

Optional Equipment:
Sofa/bed w/two 3-point seat belts
Exterior
Exterior
Pop-top sleeping area
Porch light w/interior switch (passenger side)
Driver side service light w/interior switch
Assist bar
Side screen door
Rear screen door
Aluminum running board w/logoed tread and pet loop attachment
Rod and privacy screen (provided for rear annex)

Optional Equipment:
Option to remove:  Pop-top sleeping area
Heating & Cooling System
Heating & Cooling System
Truma Combi® Eco Heating System
​13,500 BTU air conditioner w/directional ducts and dial control


Plumbing System
Plumbing System
Exterior wash station (located behind passenger seat)
10' sewer hose
On-demand water pump
Permanent-mount LP tank w/gauge
Fresh water sight glass
Heated drainage system
Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door)
Eco-Hot® water system
Safety
Safety
LP, smoke, and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
Child seat tether (sofa/bed option)
Fog lamps
Warranty
Warranty
12-month/24,000-mile basic warranty*

*See your dealer for complete warranty information.

Weights and Measurements

Exterior Length
19'9"
Exterior Height 1
9'6"
Exterior Width
6'9"
Interior Height
6'3"
Interior Width
6'2"
Freshwater Tank Capacity (gal.) 4
20
Water Heater Capacity (gal.)
2.6
Holding Tank Capacity — Gray (gal.) 4
20
LP Capacity (lbs.) 5
25
Fuel Capacity (gal.)
24
GCWR (lbs.) 6
12,000
GVWR (lbs.)
8,900
GAWR - Front (lbs.)
4,629
GAWR - Rear (lbs.)
5,291
Wheelbase
159"
Cassette Toilet Capacity (gal.) 4
5
Sleeps 8
4
