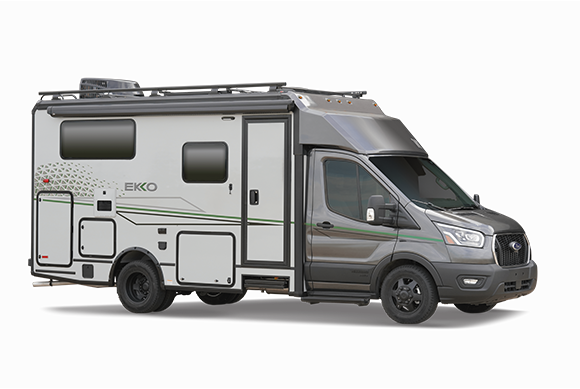

EKKO

22A Floorplan

Spacious exterior gear garage, innovative dry/wet bath, twin bed sleeping with flex bed system and available pop-top for added sleeping capacity.
Shop Inventory
22A

Interior Decor Options

*Interiors are representations only and are subject to change.

Veredis

Veredis

Specifications

Weights & Measurements
Weights & Measurements
Exterior Length
23'
Exterior Height 1
10'6"
Exterior Width
7'2.5"
Exterior Storage (cu. ft.) 3
65.3*
Awning Length
13'
Interior Height
6'8"
Interior Width
6'9"
Freshwater Tank Capacity (gal.) 4
50
Water Heater Capacity (gal.)
Continuous
Holding Tank Capacity — Gray (gal.) 4
51
LP Capacity (lbs.) 5
40
Fuel Capacity (gal.)
31
GCWR (lbs.) 6
15,000
GVWR (lbs.)
11,000
GAWR - Front (lbs.)
4,630
GAWR - Rear (lbs.)
7,275
Wheelbase
156"
Cassette Toilet Capacity (gal.) 4
5
Sleeps 8
4
Chassis
Chassis
Ford® AWD Transit Chassis
3.5L EcoBoost® V6 gas engine, 10-speed automatic Selectshift® transmission with overdrive
4-wheel anti-lock disc brakes
High-intensity discharge (HID) headlamps
Trailer hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
Stylized performance wheels
Spare tire

Cab Conveniences
Cab Conveniences
Radio/Rearview monitor system 8" colored multi-function touchscreen with SYNC®, navigation, AM/FM stereo with HD/SiriusXM® capability, Apple CarPlay®Android Auto, Bluetooth®, dual USB ports and integrated rear camera display
FordPass™ Connect
Cab seats armrest, fixed lumbar support, headrest, recline, slide and swivel
Airbags driver, passenger
3-point seat belts
2 cab seat lounge cushions
Power door lock w/remote control
Power windows
Power mirrors w/defrost and turn signals
Power assist steering w/tilt wheel
Adaptive cruise control
Lane-keeping assist
Pre-collision assist w/Automatic Emergency Braking (AEB)
Driver alert
Automatic rain-sensing wipers
Wiper activated headlamps
Auto headlamps w/high beam control
Blind spot monitoring
Tire pressure monitoring system
Sunvisors
Cab mat
Front wraparound curtain
Thermal cab divider wall panel
Electrical System
Electrical System
Auxiliary start circuit
Automatic dual-battery charge control
Coach battery disconnect system
Dedicated second alternator to charge coach batteries
Exterior AC duplex receptacle
Exterior TV jack
Cummins Onan® QG 2800i gas generator
30-amp power cord
(1) 320-amp-hour lithium ion battery w/Bluetooth control package and battery pack heating system
(2) 170-watt and (1) 115-watt solar panel/battery charger (220-watts flexible surface solar panel w/optional pop-top)
2,000-watt pure sine wave inverter/80-amp charger

Optional Equipment:
Option to remove:  Cummins Onan QG 2,800i gas generator
Add (1) additional 320-amp-hour lithium ion battery (Generator delete mandatory with this option)


Interior
Interior
LED ceiling lights
Tinted dual-pane euro acrylic windows w/screen and cassette shade
Dinette seating w/3-point seat belts
Pull-up/fold down table
Color touchscreen systems monitor panel
Vinyl flooring throughout
Satellite system ready
Amplified digital HDTV antenna
Roof wiring access port
Assist bar
RAM® Tough-Track Mount (dinette overhead)
110V, 12V, USB charging ports
Deluxe powered ventilator fan w/remote
Overhead accent lighting

Optional Equipment:
Entertainment system smart Blu-ray disc player, Bluetooth® soundbar and 24" HDTV
Front cab air mattress 30" x 65" w/support base, cordless pump, repair kit and storage bag
Galley
Galley
Laminate countertops
Microwave oven w/touch control
Pantry
2-burner LP range cooktop w/cover
5.3 cu. ft. (12V) single door compressor-driven refrigerator/freezer
Stainless steel sink w/cover
Adjustable/removable table/counter extension/workstation

Bath
Bath
Medicine cabinet
Oxygenics® shower head
Dry/wet bath w/pivoting wall
Robe hook(s)
24"x30" Shower w/wall surround
Shower curtain
Molded round sink w/single control faucet
Tissue holder
Swiveling cassette toilet

Bedroom
Bedroom
Twin beds w/WinnSleep® System
Flex bed kit
Wardrobe/drawer storage below beds
Metal clothes rod
Room divider curtain
Reading lights
110V, 12V, USB charging ports

Exterior
Exterior
Heated gear garage w/L-track cargo tie down system, 110V/12V charging ports and LED lighting
Powered patio awning w/LED lighting and Bluetooth® control
Ladder (N/A w/pop-top)
LED porch light w/interior switch
Mud flaps

Optional Equipment:
Pop-top sleeping area w/FROLI® sleep system and 110V/USB charging ports (N/A w/luggage rack, exterior kitchen, or ladder)
Batwing awning
Luggage rack (N/A w/pop-top)
Exterior kitchen w/chest style 12V refrigerator/freezer, 2-burner LP cooktop, flip-up counter extension, quick-connect faucet, collapsible sink, and LP quick-connect hose (N/A w/pop-top)
Option to remove:  Powered patio awning w/LED lighting and Bluetooth control
Option to remove:  Exterior graphics
Heating & Cooling System
Heating & Cooling System
13,500 BTU air conditioner
Truma® VarioHeat comfort
Notes and Exclusions
Notes and Exclusions



  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.  The actual height of our vehicle may vary by several inches depending on chassis or equipment variations.  Please contact your dealer for further information.
  2. Not applicable to this model.
  3. The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
  4. Capacities are based on measurements prior to tank installation.  Slight capacity variations can result due to installation applications.
  5. Capacities shown are tank manufacturer’s listed water capacity (W.C.).  Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
  6. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR and GCWR, as well as adequate trailer brakes.  Please refer to the Operator’s Manual of your vehicle for further towing information.
  7. See separate chassis warranty.
  8. See your dealer for complete warranty information.
  9. Sleeping capacity is the maximum based on a specific floorplan.



* Estimated storage without available exterior kitchen.  Rear garage equates for 54.6 cu.ft. of storage.

** Disclaimer:  Winnebago recommends following the winter use guidelines and winterization procedures outlined in your owner's manual whenever camping in freezing conditions.

Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle.

In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.

***Base Manufacturers Suggested Retail Price shown. Base price does not include tax, title, license, delivery charges or optional features. Prices are subject to change without notice.

Plumbing System
Plumbing System
Insulated water service center houses water center control panel, hooks, cable tv input, freshwater drain and portable satellite dish hook-up
Truma AquaGo® tankless comfort plus water heater w/recirculation pump
On-demand water pump
Cold water purification system (galley only)
Heated holding tank compartment
10' sewer hose
Shower drain pump
LPG accessory connection (patio area)
Safety
Safety
LPG leak, smoke and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
Upper and lower child seat anchors (dinette seating)
High-mount brake lamps
Fog lamps

Warranty
Warranty
12-month/15,000-mile limited warranty*
36-month/36,000-mile limited warranty on structure*
10-year limited parts-and-labor warranty on roof skin*

*See your dealer for complete warranty information.
