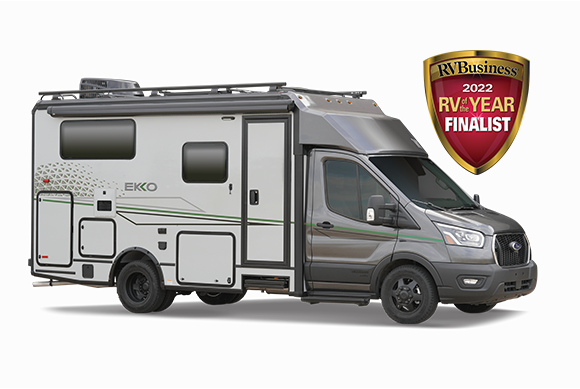

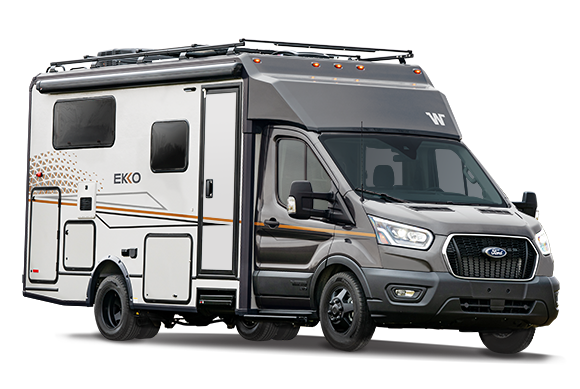

The all-new Winnebago® EKKO combines the efficiency of a camper van, the added capacity of a Class C coach, and the enhanced capability of AWD to create not just a new model, but an entirely new type of RV.

Starting At: $163,662


23'2" Length
4 Sleeps9


Big Things in Small Packages

Big Things in Small Packages

Combining the efficiency of a camper van and the capacity of a Class C coach, the EKKO takes the phrase ‘big things in small packages’ to a whole new level. From the massive heated pass-through gear garage – large enough to store bicycles, inflatable kayaks and other outdoor gear – to the large living, sleeping, and cooking space, the EKKO is sure to become your favorite adventure vehicle.

All-Wheel Drive Ford® Transit Chassis

All-Wheel Drive Ford® Transit Chassis

The 3.5L EcoBoost® V6 delivers 310 horsepower and 400 lb.-ft. of torque, while the 31-gallon fuel tank greatly extends the EKKO's range.  Standard safety features include Adaptive Cruise Control, Lane-Keeping System, Pre-Collision Braking, Driver Alert and more, plus the Winnebago-added Blind Spot Monitoring system.

Winnebago EKKO aerial view of batwing awning, patio awning and solar panels

Off-Grid Ready

Camp almost anywhere!  Three solar panels that pump out 455-watts, a second alternator dedicated to charging the batteries while driving, and the standard lithium-ion batteries provide further energy independence.  The 50-gallon freshwater tank plus proportionate waste tanks make extended stays possible.

Winnebago EKKO exterior view, traveling down a snowy road

All-Weather Prepped

With all tanks and water lines inside the coach above the floor, extensive all-season insulation in the roof, walls and floor, dual-pane acrylic windows, and multiple insulated exterior compartments, the camping season doesn't have to end when the temperature drops.**

The Comforts of Home

The Comforts of Home

A full galley equipped with energy-efficient appliances, our Flex Bed system with our innovative new WinnSleep system, and an innovative dry/wet bath with pivoting wall that seperates the shower area, will make owners feel right at home anywhere.  Guests on board?  No problem, thanks to dinette seating with three-point seat belts and child seat tether anchors, not to mention the added sleeping capacity – and penthouse views – of the optional pop-top.


Exterior Length 23'2"
Exterior Height1 10'6"
Exterior Width2 7'2.5"
Exterior Storage3 (cu. ft.) 65.3*
Awning Length 13'
Interior Height 6'8"
Interior Width 6'9"
Freshwater Tank Capacity4 (gal.) 50
Water Heater Capacity (gal.) Continuous
Holding Tank Capacity4 — Black (gal.) NA
Holding Tank Capacity4 — Gray (gal.) 51
LP Capacity5 (lbs.) 40
Fuel Capacity (gal.) 31
GCWR6 (lbs.) 15,000
GVWR (lbs.) 11,000
GAWR - Front (lbs.) 4,630
GAWR - Rear (lbs.) 7,275
Wheelbase 156"
Cassette Toilet Capacity4 (gal.) 5
Sleeps9 4
Axles (lbs.) ---
Dry Weight (lbs.) ---
Furnace (BTU) ---
Garage Length ---
Hitch Weight (lbs.) ---
Slideouts ---
Tire Size ---

Ford® AWD Transit Chassis
3.5L EcoBoost® V6 gas engine, 10-speed automatic Selectshift® transmission with overdrive
4-wheel anti-lock disc brakes
High-intensity discharge (HID) headlamps
Trailer hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
Stylized performance wheels
Spare tire

Radio/Rearview monitor system 8" colored multi-function touchscreen with SYNC®3, navigation, AM/FM stereo with HD/SiriusXM® capability, Apple CarPlay®Android Auto, Bluetooth®, dual USB ports and integrated rear camera display
FordPass™ Connect
Cab seats armrest, fixed lumbar support, headrest, recline, slide and swivel
Airbags driver, passenger
3-point seat belts
2 cab seat lounge cushions
Power door lock w/remote control
Power windows
Power mirrors w/defrost and turn signals
Power assist steering w/tilt wheel
Adaptive cruise control
Lane-keeping assist
Pre-collision assist w/Automatic Emergency Braking (AEB)
Driver alert
Automatic rain-sensing wipers
Wiper activated headlamps
Auto headlamps w/high beam control
Blind spot monitoring
Tire pressure monitoring system
Cab mat
Front wraparound curtain
Thermal cab divider wall panel

LED ceiling lights
Tinted dual-pane euro acrylic windows w/screen and cassette shade
Dinette seating w/3-point seat belts
Pull-up/fold down table
Color touchscreen systems monitor panel
Vinyl flooring throughout
Satellite system ready
Amplified digital HDTV antenna
Roof wiring access port
Assist bar
RAM® Tough-Track Mount (dinette overhead)
110V, 12V, USB charging ports
Deluxe powered ventilator fan w/remote
Overhead accent lighting
Optional Equipment:
Entertainment system smart Blu-ray disc player, Bluetooth® soundbar and 24" HDTV

Laminate countertops
Microwave oven w/touch control
2-burner LP range cooktop w/cover
5.3 cu. ft. single door 12V refrigerator/freezer
Stainless steel sink w/cover
Adjustable/removable table/counter extension/workstation

Medicine cabinet
Oxygenics® shower head
Dry/wet bath w/pivoting wall
Robe hook(s)
24"x30" Shower w/wall surround
Shower curtain
Molded round sink w/single control faucet
Tissue holder
Swiveling cassette toilet

Twin beds w/WinnSleepSystem
Flex bed kit
Wardrobe/drawer storage below beds
Metal clothes rod
Room divider curtain
Reading lights
110V, 12V, USB charging ports

Heated gear garage w/L-track cargo tie down system, 110V/12V charging ports and LED lighting
Aluminum cab steps w/logoed tread and loop attachment
Powered patio awning w/LED lighting and Bluetooth® control
LED porch light w/interior switch
Mud flaps
Optional Equipment:
Pop-top sleeping area w/FROLI® sleep system and 110V/USB charging ports (N/A w/luggage rack or exterior kitchen)
Batwing awning
Luggage rack (N/A w/pop-top)
Exterior kitchen w/chest style 12V refrigerator/freezer, 2-burner LP cooktop, flip-up counter extension, quick-connect faucet, collapsible sink, and LP quick-connect hose (N/A w/pop-top)
Option to remove:  Powered patio awning w/LED lighting and Bluetooth control
Option to remove:  Exterior graphics

13,500 BTU air conditioner
Truma® VarioHeat comfort

Auxiliary start circuit
Automatic dual-battery charge control
Coach battery disconnect system
Dedicated second alternator to charge coach batteries
Exterior AC duplex receptacle
Exterior TV jack
Cummins Onan® QG 2800i gas generator
30-amp power cord
(1) 320-amp-hour lithium ion battery w/Bluetooth control package and battery pack heating system
(2) 170-watt and (1) 115-watt solar panel/battery charger
2,000-watt pure sine wave inverter/80-amp charger
Optional Equipment:
Option to remove:  Cummins Onan QG 2,800i gas generator
Add (1) additional 320-amp-hour lithium ion battery (Generator delete mandatory with this option)

Insulated water service center houses water center control panel, hooks, cable tv input, freshwater drain and portable satellite dish hook-up
Truma AquaGo® tankless comfort plus water heater w/recirculation pump
On-demand water pump
Cold water purification system (galley only)
Heated holding tank compartment
10' sewer hose
Shower drain pump
LPG accessory connection (patio area)

LPG leak, smoke and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
Upper and lower child seat tether anchors (dinette seating)
High-mount brake lamps
Fog lamps

12-month/15,000-limited warranty
36-month/36,000-mile limited warranty
10-year limited parts-and-labor warranty on roof skin


  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.  The actual height of our vehicle may vary by several inches depending on chassis or equipment variations.  Please contact your dealer for further information.
  2. Not applicable to this model.
  3. The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
  4. Capacities are based on measurements prior to tank installation.  Slight capacity variations can result due to installation applications.
  5. Capacities shown are tank manufacturer’s listed water capacity (W.C.).  Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
  6. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR and GCWR, as well as adequate trailer brakes.  Please refer to the Operator’s Manual of your vehicle for further towing information.
  7. See separate chassis warranty.
  8. See your dealer for complete warranty information.
  9. Sleeping capacity is the maximum based on a specific floorplan.


* Estimated storage without available exterior kitchen.  Rear garage equates for 54.6 cu.ft. of storage.

** Disclaimer:  Winnebago recommends following the winter use guidelines and winterization procedures outlined in your owner's manual whenever camping in freezing conditions.

Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle.

In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.

***Base Manufacturers Suggested Retail Price shown. Base price does not include tax, title, license, delivery charges or optional features. Prices are subject to change without notice.
