H171DB

A single-axle floorplan featuring a U-shaped dinette, slide out, dry bath and sleeping in the front.
Build Yours Shop Inventory
H171DB

Interior Decor Options

*Interiors are representations only and are subject to change.

Zinc

Zinc

Specifications

Weights & Measurements
Weights & Measurements
Exterior Length
20'7.5"
Exterior Height 1
10'2"
Exterior Width
7'9"
Awning Length
10'
Interior Height
6'5"
Freshwater Tank Capacity (gal.) 4
31
Water Heater Capacity (gal.)
6
Holding Tank Capacity — Black (gal.) 4
25
Holding Tank Capacity — Gray (gal.) 4
25
LP Capacity (lbs.) 5
20
GVWR (lbs.)
4,200
Sleeps 8
3
Axles (lbs.)
Dry Weight (lbs.)
3,598
Furnace (BTU)
18,000
Dry Hitch Weight (lbs.)
444
Hitch Height
26"
Tire Size
235/75R15D
Interior
Interior
LED TV
TV antenna
AV System AM/FM/CD/DVD/USB/Bluetooth
USB charge ports
Wifi prep
Wireless cell phone charger

Galley
Galley
Convection microwave
Gas/electric refrigerator
Recessed 3 burner cooktop w/ backlit knobs & glass cover (H210RB, H215HS only)
Recessed 2 burner cooktop (H170S, H171DB, H172BH only)
Exterior
Exterior
NXG Engineered frame
Exterior fiberglass w/ Azdel
One-piece fiberglass roof
Aluminum wheel assemblies
Power awning w/ LED lighting
Power tongue jack
Torflex Dexter Axle(s)
Exterior powder coated rack system
Large powder coated wheel wells
Large powder coated LP/Battery/Gear Storage Box
15" Offroad tire/axle lift
LED exterior lighting
Exterior speakers
Backup camera prep
Accessory hitch receiver
Spare tire
Power stabilizer jacks
Heating & Cooling System
Heating & Cooling System
Radiant foil insulation
13.5K Low Profile Roof A/C
12v holding tank pad heaters w/ interior switch
Electrical System
Electrical System
Roof mount solar prep
(1) 100-watt solar panel w/ charge control monitor
Plumbing System
Plumbing System
6 Gallon gas/electric/DSI water heater
Enclosed tanks
(2) 20lb. LP tanks
Warranty 7
Warranty 7
7

3-Year Limited Structural Warranty & 1-Year Limited Base Warranty*

*See your dealer for complete warranty information.

Packages
Packages


Weights & Measurements

Exterior Length
20'7.5"
Exterior Height 1
10'2"
Exterior Width
7'9"
Awning Length
10'
Interior Height
6'5"
Freshwater Tank Capacity (gal.) 4
31
Water Heater Capacity (gal.)
6
Holding Tank Capacity — Black (gal.) 4
25
Holding Tank Capacity — Gray (gal.) 4
25
LP Capacity (lbs.) 5
20
GVWR (lbs.)
4,200
Sleeps 8
3
Axles (lbs.)
Dry Weight (lbs.)
3,598
Furnace (BTU)
18,000
Dry Hitch Weight (lbs.)
444
Hitch Height
26"
Tire Size
235/75R15D

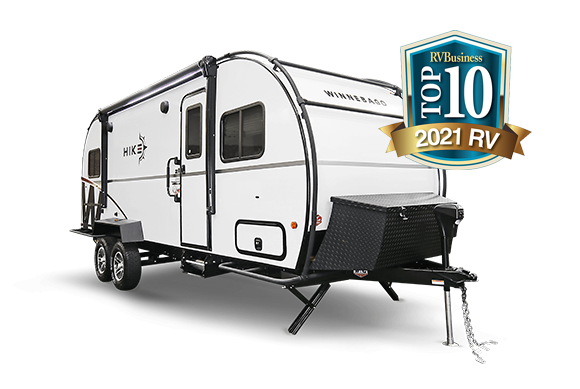

Hike travel trailer, winner of Top 10 2021 RV
