22A

Spacious exterior gear garage, innovative dry/wet bath, twin bed sleeping with flex bed system and available pop-top for added sleeping capacity.
Build Yours
22A

Interior Decor Options

*Interiors are representations only and are subject to change.

Veredis

Veredis

Specifications

Weights & Measurements
Weights & Measurements
Exterior Length
23'
Exterior Height 1
10'6"
Exterior Width
7'2.5"
Exterior Storage (cu. ft.) 3
65.3*
Awning Length
13'
Interior Height
6'8"
Interior Width
6'9"
Freshwater Tank Capacity (gal.) 4
50
Water Heater Capacity (gal.)
Continuous
Holding Tank Capacity — Gray (gal.) 4
51
LP Capacity (lbs.) 5
40
Fuel Capacity (gal.)
31
GCWR (lbs.) 6
15,000
GVWR (lbs.)
11000
GAWR - Front (lbs.)
4,630
GAWR - Rear (lbs.)
7,275
Wheelbase
156"
Cassette Toilet Capacity (gal.) 4
5
Sleeps 8
4
Chassis
Chassis
Ford® AWD Transit Chassis
3.5L EcoBoost® V6 gas engine, 10-speed automatic Selectshift® transmission with overdrive
4-wheel anti-lock disc brakes
High-intensity discharge (HID) headlamps
Trailer hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
Stylized performance wheels
Spare tire

Cab Conveniences
Cab Conveniences
Radio/Rearview monitor system 8" colored multi-function touchscreen with SYNC®3, navigation, AM/FM stereo with HD/SiriusXM® capability, Apple CarPlay®Android Auto, Bluetooth®, dual USB ports and integrated rear camera display
FordPass™ Connect
Cab seats armrest, fixed lumbar support, headrest, recline, slide and swivel
Airbags driver, passenger
3-point seat belts
2 cab seat lounge cushions
Power door lock w/remote control
Power windows
Power mirrors w/defrost and turn signals
Power assist steering w/tilt wheel
Adaptive cruise control
Lane-keeping assist
Pre-collision assist w/Automatic Emergency Braking (AEB)
Driver alert
Automatic rain-sensing wipers
Wiper activated headlamps
Auto headlamps w/high beam control
Blind spot monitoring
Tire pressure monitoring system
Sunvisors
Cab mat
Front wraparound curtain
Thermal cab divider wall panel
Wheelbase
Wheelbase
156"
Interior
Interior
LED ceiling lights
Tinted dual-pane euro acrylic windows w/screen and cassette shade
Dinette seating w/3-point seat belts
Pull-up/fold down table
Color touchscreen systems monitor panel
Vinyl flooring throughout
Satellite system ready
Amplified digital HDTV antenna
Roof wiring access port
Assist bar
RAM® Tough-Track Mount (dinette overhead)
110V, 12V, USB charging ports
Deluxe powered ventilator fan w/remote
Overhead accent lighting

Optional Equipment:
Entertainment system smart Blu-ray disc player, Bluetooth® soundbar and 24" HDTV
Front cab air mattress 30" x 65" w/support base, cordless pump, repair kit and storage bag
Galley
Galley
Laminate countertops
Microwave oven w/touch control
Pantry
2-burner LP range cooktop w/cover
5.3 cu. ft. (12V) single door compressor-driven refrigerator/freezer
Stainless steel sink w/cover
Adjustable/removable table/counter extension/workstation

Bath
Bath
Medicine cabinet
Oxygenics® shower head
Dry/wet bath w/pivoting wall
Robe hook(s)
24"x30" Shower w/wall surround
Shower curtain
Molded round sink w/single control faucet
Tissue holder
Swiveling cassette toilet

Bedroom
Bedroom
Twin beds w/WinnSleep® System
Flex bed kit
Wardrobe/drawer storage below beds
Metal clothes rod
Room divider curtain
Reading lights
110V, 12V, USB charging ports

Exterior
Exterior
Heated gear garage w/L-track cargo tie down system, 110V/12V charging ports and LED lighting
Aluminum cab steps w/logoed tread and loop attachment (N/A w/pop-top)
Powered patio awning w/LED lighting and Bluetooth® control
Ladder (N/A w/pop-top)
LED porch light w/interior switch
Mud flaps

Optional Equipment:
Pop-top sleeping area w/FROLI® sleep system and 110V/USB charging ports (N/A w/luggage rack, exterior kitchen, aluminum cab steps or ladder)
Batwing awning
Luggage rack (N/A w/pop-top)
Exterior kitchen w/chest style 12V refrigerator/freezer, 2-burner LP cooktop, flip-up counter extension, quick-connect faucet, collapsible sink, and LP quick-connect hose (N/A w/pop-top)
Option to remove:  Powered patio awning w/LED lighting and Bluetooth control
Option to remove:  Exterior graphics
Heating & Cooling System
Heating & Cooling System
13,500 BTU air conditioner
Truma® VarioHeat comfort
Electrical System
Electrical System
Auxiliary start circuit
Automatic dual-battery charge control
Coach battery disconnect system
Dedicated second alternator to charge coach batteries
Exterior AC duplex receptacle
Exterior TV jack
Cummins Onan® QG 2800i gas generator
30-amp power cord
(1) 320-amp-hour lithium ion battery w/Bluetooth control package and battery pack heating system
(2) 170-watt and (1) 115-watt solar panel/battery charger (220-watts flexible surface solar panel w/optional pop-top)
2,000-watt pure sine wave inverter/80-amp charger

Optional Equipment:
Option to remove:  Cummins Onan QG 2,800i gas generator
Add (1) additional 320-amp-hour lithium ion battery (Generator delete mandatory with this option)


Plumbing System
Plumbing System
Insulated water service center houses water center control panel, hooks, cable tv input, freshwater drain and portable satellite dish hook-up
Truma AquaGo® tankless comfort plus water heater w/recirculation pump
On-demand water pump
Cold water purification system (galley only)
Heated holding tank compartment
10' sewer hose
Shower drain pump
LPG accessory connection (patio area)
Safety
Safety
LPG leak, smoke and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
Upper and lower child seat anchors (dinette seating)
High-mount brake lamps
Fog lamps

Warranty 7
Warranty 7
7
12-month/15,000-mile limited warranty*
36-month/36,000-mile limited warranty on structure*
10-year limited parts-and-labor warranty on roof skin*

*See your dealer for complete warranty information.

Weights & Measurements

Exterior Length
23'
Exterior Height 1
10'6"
Exterior Width
7'2.5"
Exterior Storage (cu. ft.) 3
65.3*
Awning Length
13'
Interior Height
6'8"
Interior Width
6'9"
Freshwater Tank Capacity (gal.) 4
50
Water Heater Capacity (gal.)
Continuous
Holding Tank Capacity — Gray (gal.) 4
51
LP Capacity (lbs.) 5
40
Fuel Capacity (gal.)
31
GCWR (lbs.) 6
15,000
GVWR (lbs.)
11000
GAWR - Front (lbs.)
4,630
GAWR - Rear (lbs.)
7,275
Wheelbase
156"
Cassette Toilet Capacity (gal.) 4
5
Sleeps 8
4

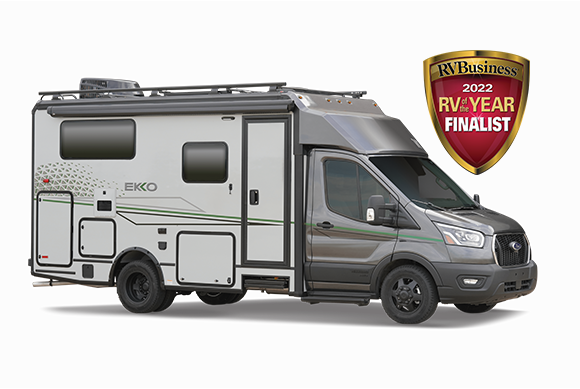

ekko raw sienna exterior with truma cold weatherbadge
