EKKO
EKKO

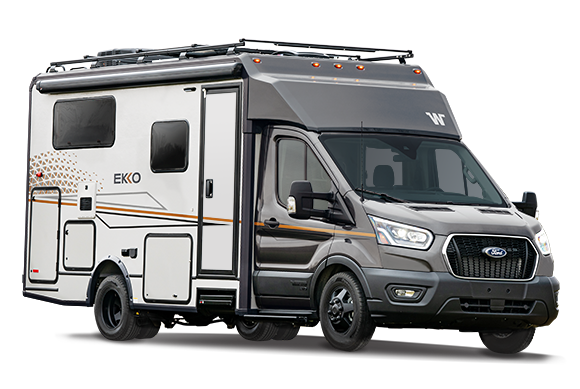

The all-new Winnebago® EKKO™ combines the efficiency of a camper van, the added capacity of a Class C coach, and the enhanced capability of AWD to create not just a new model, but an entirely new type of RV.
Starting At: $163,662
Floorplans
Features
Big Things in Small Packages
Combining the efficiency of a camper van and the capacity of a Class C coach, the EKKO takes the phrase ‘big things in small packages’ to a whole new level. From the massive heated pass-through gear garage – large enough to store bicycles, inflatable kayaks and other outdoor gear – to the large living, sleeping, and cooking space, the EKKO is sure to become your favorite adventure vehicle.
All-Wheel Drive Ford® Transit Chassis
The 3.5L EcoBoost® V6 delivers 310 horsepower and 400 lb.-ft. of torque, while the 31-gallon fuel tank greatly extends the EKKO's range. Standard safety features include Adaptive Cruise Control, Lane-Keeping System, Pre-Collision Braking, Driver Alert and more, plus the Winnebago-added Blind Spot Monitoring system.
Off-Grid Ready
Camp almost anywhere! Three solar panels that pump out 455-watts, a second alternator dedicated to charging the batteries while driving, and the standard lithium-ion batteries provide further energy independence. The 50-gallon freshwater tank plus proportionate waste tanks make extended stays possible.
All-Weather Prepped
With all tanks and water lines inside the coach above the floor, extensive all-season insulation in the roof, walls and floor, dual-pane acrylic windows, and multiple insulated exterior compartments, the camping season doesn't have to end when the temperature drops.**
The Comforts of Home
A full galley equipped with energy-efficient appliances, our Flex Bed system with our innovative new WinnSleep™ system, and a dry bath (24C) or innovative dry/wet bath with pivoting wall that seperates the shower area (22A), will make owners feel right at home anywhere. Guests on board? No problem, thanks to dinette seating with three-point seat belts and child seat tether anchors, not to mention the added sleeping capacity – and penthouse views – of the optional pop-top (22A).
Specifications
| 22ANew | 24CNew | |
|---|---|---|
| Exterior Length | 23'2" | 25' |
| Exterior Height1 | 10'6" | 10'6" |
| Exterior Width2 | 7'2.5" | 7'2.5" |
| Exterior Storage3 (cu. ft.) | 65.3* | 60 |
| Awning Length | 13' | 13' |
| Interior Height | 6'8" | 6'8" |
| Interior Width | 6'9" | 6'9" |
| Freshwater Tank Capacity4 (gal.) | 50 | 50 |
| Water Heater Capacity (gal.) | Continuous | Continuous |
| Holding Tank Capacity4 — Black (gal.) | NA | 21 |
| Holding Tank Capacity4 — Gray (gal.) | 51 | 30 |
| LP Capacity5 (lbs.) | 40 | 40 |
| Fuel Capacity (gal.) | 31 | 31 |
| GCWR6 (lbs.) | 15,000 | 15,000 |
| GVWR (lbs.) | 11,000 | 11,000 |
| GAWR - Front (lbs.) | 4,630 | 4,630 |
| GAWR - Rear (lbs.) | 7,275 | 7,275 |
| Wheelbase | 156" | 178" |
| Cassette Toilet Capacity4 (gal.) | 5 | NA |
| Sleeps9 | 4 | 2 |
| Axles (lbs.) | --- | --- |
| Dry Weight (lbs.) | --- | --- |
| Furnace (BTU) | --- | --- |
| Garage Length | --- | --- |
| Hitch Weight (lbs.) | --- | --- |
| Slideouts | --- | --- |
| Tire Size | --- | --- |
- The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. The actual height of our vehicle may vary by several inches depending on chassis or equipment variations. Please contact your dealer for further information.
- Not applicable to this model.
- The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
- Capacities are based on measurements prior to tank installation. Slight capacity variations can result due to installation applications.
- Capacities shown are tank manufacturer’s listed water capacity (W.C.). Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
- Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR and GCWR, as well as adequate trailer brakes. Please refer to the Operator’s Manual of your vehicle for further towing information.
- See separate chassis warranty.
- See your dealer for complete warranty information.
- Sleeping capacity is the maximum based on a specific floorplan.
* 22A - estimated storage without available exterior kitchen. Rear garage equates for 54.6 cu.ft. of storage.
** Disclaimer: Winnebago recommends following the winter use guidelines and winterization procedures outlined in your owner's manual whenever camping in freezing conditions.
Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle.
In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.
***Base Manufacturers Suggested Retail Price shown. Base price does not include tax, title, license, delivery charges or optional features. Prices are subject to change without notice.
