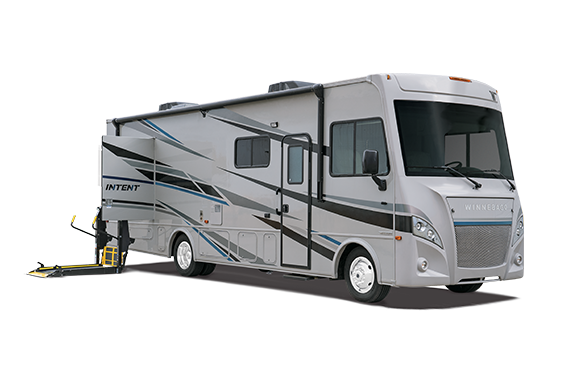

The gas-powered Intent is a clean-sheet design that reimagines the modern motorhome. Fully equipped with a long list of standard features, the Intent is an easy-to-drive size that can fit into almost any National Park campsite.  Narrow cab pillars offer outstanding visibility, while two slideouts add extra living space to the master bedroom and attractive lounge and dining area. Standard features includes exchangeable LP tanks, abundant storage, satellite-ready 39"  HDTV, and a powered patio awning with LED lighting.  For more information, call 1-800-492-9135 or email us at [email protected].

Starting At: $201,295
Intent AE

Floorplans

30'10" Length
6 Sleeps9

Features

Winnebago Intent interior wide view, front to back

Choose Your Adventure

Make your Intent your own with four fresh floor plans that meet your budget, including the spacious new triple-slideout.

See it All

See it All

Sleek in-cab corner pillars offer incredible views, and the innovative Bluetooth® Rearview Monitor System increases your visibility – and your safety.

Specifications

AE 30R
Exterior Length 30'10"
Exterior Height1 12'
Exterior Width2 8'5"
Exterior Storage3 (cu. ft.) 114
Awning Length 22'
Interior Height 7'
Interior Width 8'
Freshwater Tank Capacity4 (gal.) 51
Water Heater Capacity (gal.) 6
Holding Tank Capacity4 — Black (gal.) 36
Holding Tank Capacity4 — Gray (gal.) 42
LP Capacity5 (lbs.) 39.76
Fuel Capacity (gal.) 80
GCWR6 (lbs.) 23,000
GVWR (lbs.) 16,000
GAWR - Front (lbs.) 6,500
GAWR - Rear (lbs.) 11,000
Wheelbase 190"
Cassette Toilet Capacity4 (gal.) ---
Sleeps9 6
Axles (lbs.) ---
Dry Weight (lbs.) ---
Furnace (BTU) ---
Garage Length ---
Hitch Weight (lbs.) ---
Slideouts ---
Tire Size ---

3-valve Triton® V10 engine SEFI, TorqShift™ 6-speed automatic transmission w/tow/haul, 175-amp. alternator
Hydraulic brakes w/ABS
Trailer Hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
7-pin connector
Stainless steel wheel liners
Automatic hydraulic leveling jacks
Rear valve stem extensions

Pivoting Radio/Rearview Monitor System 6.2" WVGA color touch screen, CD/DVD player, iPod®/iPhone® compatibility, rear color camera, Bluetooth®
Cab seats w/two-position armrests, fixed lumbar support, and multi-adjustable slide/recline/swivel
Versa driver's seat swivel, recline, and multi-adjustable
3-point seat belts
Chassis/house battery radio power switch
Power steering w/tilt wheel
Power mirrors w/defrost
Powered MCD blackout front shade
Dash workstation w/USB and 12-volt power supply
Motor cover
Instrument panel w/rotating radio display
Removable pedestal table
Dual-mode heater/air conditioning
Sideview video camera system

39" HDTV
Amplified digital TV antenna system
Satellite system ready
Pleated blinds
Monitor panel
Tinted windows
LED lights
Vinyl flooring throughout
Assist handle
USB chargers
StudioLoft Bed (powered with ladder)
Dinette with Hi-Lo table and storage
Wider aisleway for accessibility
BraunAbility® Century-2 wheelchair lift
Air-assisted, power wheelchair lift door with remote controls

Thermoformed countertops
2-door residential refrigerator/freezer
Microwave oven w/touch controls
3-burner range w/oven
Powered roof ventilator fan
Pantry

Roll-in shower with adjustable height shower head & vertical assist bar
Laminate countertop
Skylight
Toilet with hand flush
Powered roof ventilator fan
Towel bar
Robe hook(s)
Tissue holder

Optional Equipment:

Wall-mount folding assist bar next to the toilet

Power Murphy Bed/Sofa with removable pedestal table
Powered roof ventilator fan
Wardrobe
32" HDTV
Powered upper cab loft bed with smooth, quiet operation

PVC Roofing System
Premium high-gloss sidewall skin
Electric entrance door steps
Powered patio awning with LED lighting
Front mud flaps
Porch light with interior switch
Incandescent lighted storage compartments
Ladder
Assist handle
Solar reflective exterior
Pass-through storage
PetPal leash tie down

Two high-efficiency 13,500 BTU low profile air conditioners

AC/DC load center, 55-amp. converter/charger
30-amp. power cord
4,000-watt Cummins Onan® MicroQuiet™ gas generator
2 deep-cycle Marine/RV Group 31 batteries
Battery disconnect system (coach)
Automatic coach dual-battery charge control
Auxiliary start circuit
AC duplex receptacle
Cable TV input
Exterior antenna jack
DC receptacles
AC/DC inverter w/remote panel
Solar panel/battery charger wiring prep, up to 450-watts
Wi-Fi prep kit

Service Center colored labels, pressurized city water hookup w/diverter valve, drainage valves, 10' sewer hose
6-gallon LP water heater w/electronic ignition
Heated holding tank compartment
Smart LP system w/2 removable 20# tanks w/room for additional capacity
On-demand water pump
Holding tank monitoring system
Winterization Package water heater bypass valve and siphon tube
Holding tank flushing system (black tank only)
Force Flow system maximizes water pressure

Child seat tether anchor (forward facing dinette seat)
LP, smoke, and carbon monoxide detectors
10 BC fire extinguisher
Ground fault interrupter

12-month/15,000-mile basic limited warranty7
36-month/36,000-mile limited warranty on structure7
15-year warranty on PVC roofing system7

  1. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.  The actual height of our vehicle may vary by several inches depending on chassis or equipment variations.  Please contact your dealer for further information.
  2. Floorplans feature a wide-body design – over 96-inches.  In making your purchase decision, you should be aware that some states restrict access on some or all state roads to 96-inches in body width.  Before making your purchase decision, you should confirm the road usage laws in the states of interest to you.
  3. The load capacity of your motorhome is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
  4. Capacities are based on measurements prior to tank installation.  Slight capacity variations can result due to installation applications.
  5. Capacities shown are tank manufacturer’s listed water capacity (W.C.).  Actual filled LP capacity is 80% of listing due to overfilling prevention device on tank.
  6. Actual towing capacity is dependent on your particular loading and towing circumstances which includes the GVWR, GAWR and GCWR, as well as adequate trailer brakes.  Please refer to the Operator’s Manual of your vehicle for further towing information.
  7. See separate chassis warranty.
  8. See your dealer for complete warranty information.
  9. Sleeping capacity is the maximum based on a specific floorplan.
  10. Increase all lengths by 4-inches if spare tire is included.



Because features, specification, equipment, and options may vary from those highlighted on this website, the buyer is responsible for confirming with the dealer the features, specifications, equipment, and options included in their specific vehicle.

In addition, Winnebago’s program of continuous product improvement may result in changes to vehicle specifications, equipment, model availability, and price without notice.

**Base Manufacturers Suggested Retail Price shown. Base price does not include tax, title, license, delivery charges or optional features. Prices are subject to change without notice.
